OK; making slow progress on my Rudder Bar (to go w/ the Camel joystick). Here’s where I am so far.

2 Likes
#2

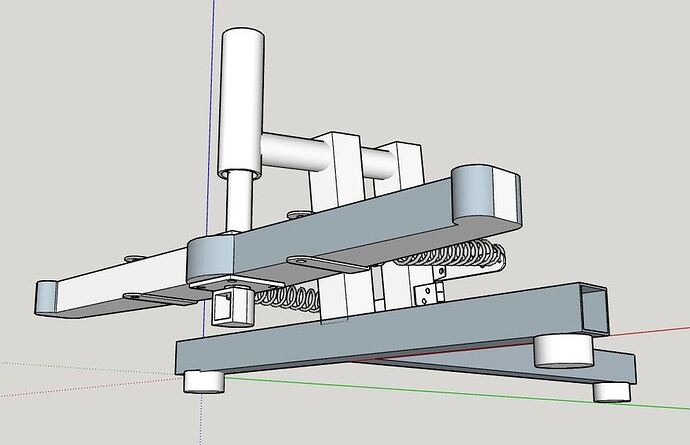

kind of a build log. This is a couple views of the Sketchup dwg I am working from.

soprudder1
soprudder1833×599 43.5 KB
soprudder2
soprudder2879×568 38.8 KB

4 Likes
#3

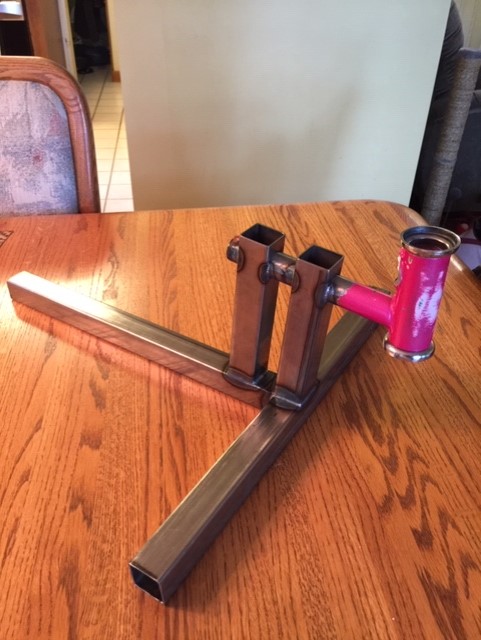

pics of early steps. Some little girl (unknowingly) donated her bike…

rudder_IMG_a5306
rudder_IMG_a5306481×640 73.9 KB
rudder_IMG_b5311
rudder_IMG_b5311481×640 77.1 KB
rudder_IMG_c5399
rudder_IMG_c5399481×640 65 KB

8 Likes
#4

Re-purposed bike parts… This is really starting to get interesting…! :+1:

2 Likes
#5

After imposing on friends for welding assist and 47 trips to HomeDepot for small metal things…

rudder_IMG_d5433
rudder_IMG_d5433481×640 85.5 KB
rudder_IMG_e5442
rudder_IMG_e5442481×640 74 KB
rudder_IMG_f5443
rudder_IMG_f5443481×640 80.9 KB

9 Likes
#7

sorry to disappoint. Beers were consumed - but not served at - The Rudder Bar. Starting to come together…

rudder_IMG_g5476
rudder_IMG_g5476481×640 86.3 KB
rudder_IMG_h5477
rudder_IMG_h5477481×640 73.2 KB

4 Likes
#8

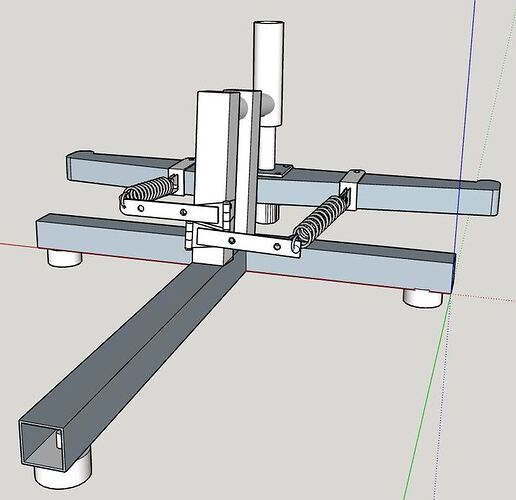

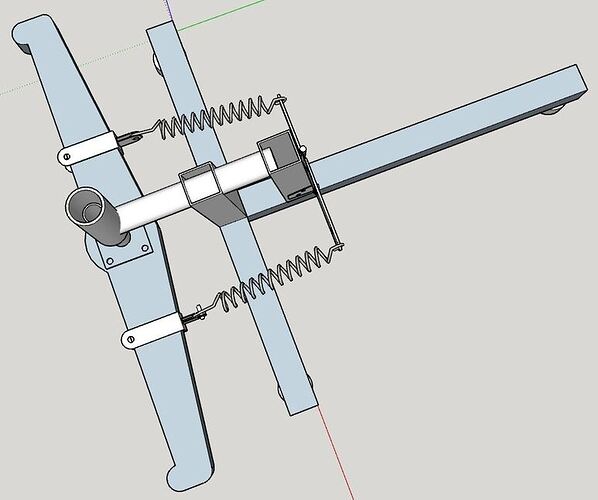

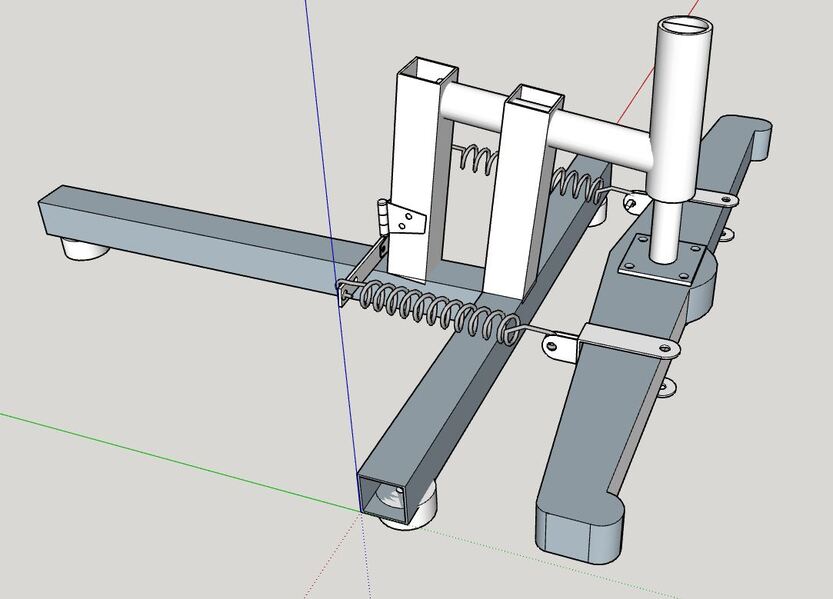

A couple more sketchup pics. THe spring mounting is a little ‘hobo’ but it works.

soprudder3
soprudder3773×646 39.1 KB
soprudder4
soprudder4718×695 38.9 KB

6 Likes
#9

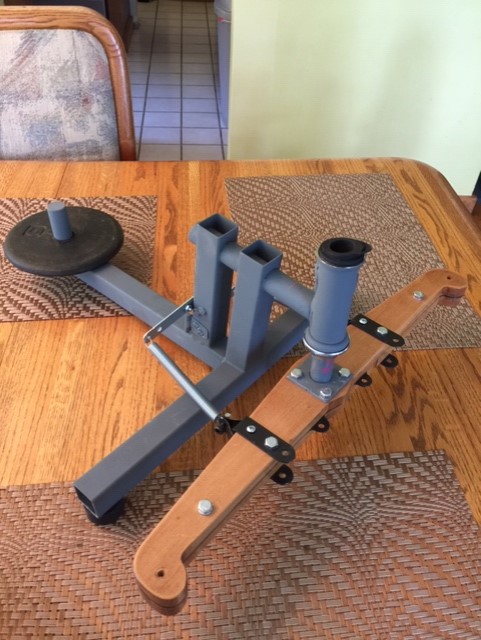

Here it is w/ all the mechanical ‘componentry’ in place. Now for the electronics so its not just a static display…

rudder_IMG_5514
rudder_IMG_5514481×640 88.6 KB
rudder_IMG_5515
rudder_IMG_5515481×640 88.8 KB
rudder_IMG_5516
rudder_IMG_5516481×640 92.6 KB
rudder_IMG_5517
rudder_IMG_5517481×640 96 KB

5 Likes
#10

Aaaah! So that’s what the hinges are for…!

481×640 92.6 KB

Clever!
I imagine that it will give a sort of center detent when the hinge touch the frame?

1 Like
#11

Yeah; shorter springs (or moving back the attachment point) would have obviated the need for the hinges and simplified the design - but I wouldn’t have gotten that definite center/neutral point.

1 Like
