Guess I could leave 5mm, to be sure…
1 Like
I found out that the handles almost fit as a touch controller mount. So, I added a washer, and presto!
I also added some wire guides.
Now I need to make mounts for the throttle and trackball…
4 Likes
Looks great!
When are you going to paint the interior an ugly shade of gray and add all the scuffs and scratches?
3 Likes
You know, I have thought about it… Prime it in a chromate green, and paint it gray. Scuffmarks and wear can look quite good.
But, in any case, it will have to wait until next summer.
2 Likes
Wow…
I’m on the final stretch of my SimBox NG build. The project has taken far longer than anticipated. But then again, my projects usually do…
It really is coming together quite nicely.
I haven’t had any opportunity to fly my sims or play with VR during the build. I have missed it! Really missed it!
Today I got some VR stick time in Aerofly FS2. I tried the newly implemented Vulkan API renderer and flew around Chicago, from Meigs Field. The first airfield I ever flew from, in a simulator…
Man, it really felt a bit like coming home!
I had forgotten how awesome VR flightsimming really is!
At first I was a bit suprised at how bad the touch controllers tracked… Turned out I had forgot to connect one of the sensors!
With both sensors up and running, all was well again, in the virtual world.
5 Likes
Welcome back! Enjoy your new cockpit! I am envious, hope to someday have my own purpose-built cockpit with awesome controls like you do…
2 Likes
A last look inside, before I attach the end plates.
Checking that nothing press against anything, or cables being squeezed.
I found a goof, actually. The Oculus sensors touched the rear upper scissor links, for the sidewalls. I forgot to account for the downwards tilt of the sensors.
3 Likes
Well…that’s it i’m afraid…kick it to the curb and start again!
1 Like
Where instead of the curb he means a sturdy shipping box with my adress on it
4 Likes
Catching up again, you’re a damn mad man! Awesome progress and design/ideation. Super cool pit.
1 Like
Ain’t it the truth…!
You understand why your teensy was delayed…
2 Likes
So…
I thought I’d just use the old trackball mount. It’s a chopped off vesa monitor arm that worked well in the old SimBox. You can see it in one of the look through pics above.
Thing is… It’s made of steel.
Don’t you see?
The rest is aluminium.

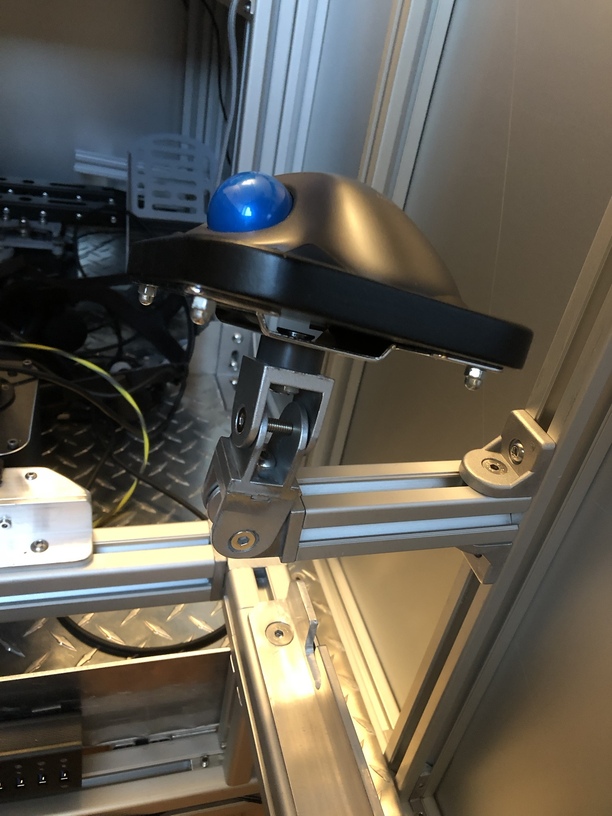

So, I just had to make a new mount.
You guys understand, don’t you?
Right?
3 Likes
I do understand completely. That cannot stand.
I am just not sure yet if you should get a hinge in Aluminum, or redo the whole sim box in Carbon Fiber.
1 Like
Good thinking…
Is SimBox Evolution a good name?
2 Likes
So… I have this ritual, when I build a new gaming PC, that goes back many moon…
Back in the days when disposable income was considerably less, and PC’s cost a small fortune over here, I had a friend in the US. Still do, actually. He used to help me out by sending hardware at US prizes, and throw me some freebies.
He had a online computer store and the PC’s he sold had these logo stickers. So, whenever I build a new rig, the sticker follows as a reminder of friendship and to be helpful to others, when I can.
Maybe someone recognize the guy? I suspect some of the old hands do…
There you go, buddy!
I guess that wraps up the SimBox NG build.
Thanks for tuning in and good night!
12 Likes
If I remember my strength of materials class correctly, there is no electrochemical corrosive reaction between aluminum and steel. So no, I am afraid I do not see the requirement from an engineering perspective.
From an ascetics point of view, you really, really, had no other choice. Good move!
1 Like
There actually is, since these are alloyed materials!
2 Likes
I stand corrected… You also need an electrolyte to cause the reaction…so, the sweat (salt water) from @Troll’s hands as he pulls Gs in a dogfight would provide that…actually just casual touches of the steel-aluminum joint would cause it, not to mention the sea air of @Troll’s domicile.
So yes, as you indicated, the aluminum will suffer galvanic corrosion just from being bolted to the steel.
However, I found this solution on line:
So how do you avoid galvanic corrosion? You electrically insulate the aluminum from the steel. The best way to do this is to use bolts and nuts to make the joint. Use an isolating coating or paint on the aluminum and the steel to isolate them electrically. However, all of your effort will go for nothing if you just bolt the joint together. You must isolate the bolt and nut from the aluminum and steel. You do this by putting a nonconducting plastic washer between the bolt head and one side of the joint and another nonconducting washer between the nut and the other side of the joint. If the pieces being bolted are thick enough, you should also buy a nonconducting sleeve to fit on the shaft of the bolt to keep it from making contact with the steel or aluminum. Thefabricator.com.
…all things considered, he’s probably better off making an aluminum stand…or rebuilding the entire thing in steel.
2 Likes
