A DIY Radar Controller

Hardware & Tech Questions
,
181

That was fast! I ordered it on sunday…

6ab7b5bda89cb73d8c4c1856970dc8a3ae088d55.JPG816×612 110 KB

182

Size comparison.

68964a1d392a96a7471dbfebb3394607bc0deb41.JPG816×612 110 KB

Mount the stick slightly forward of center?

IMG_1157.JPG612×816 160 KB

The new and improved encoder knob arrived today as well!

IMG_1158.JPG707×707 140 KB

183

Obviously.

184

Just turn it 180°

185

Turn what 180°?

186

“It”, duh.
:stuck_out_tongue_winking_eye:

187

Stupid me! :blush:

188

Now what.!?

IMG_1179.JPG707×707 148 KB

189

Radar mode selector?

190

Nah, that’s the switch on top of the handle.
This will be a generic mode selector. Why? Because the new box has room for it. Yes it has! No, I’m not overestimating the volume of the new box, for cables and the switch… :wink:

191

Cleaned it up a little and put it on the rotary switch I’ll be using.

IMG_1180.JPG707×707 119 KB

I’m thinking of painting the alu parts black…
This selector knob at least. Not sure about the big encoder wheel behind the stick.

192

Two component filler in the joints. Spray filler, two layers of primer and two topcoats matt black. I know! Glossiest (is that a word?) ‘matt’ black I have ever seen…
Turned out really well, I think.
Oh how I love making this stuff! :slight_smile:
Maybe I should make business of it, after all…?

707×707 84.8 KB
707×707 120 KB
707×707 127 KB

193

Looks Good. Very much like it belongs in a pit… Add it t the box

194

It is gorgeous!

195

The best part about a re-make is that you get to do it right the second time around… Fix those nagging little problems or upgrade that what you found a better solution to, after you finished it.

Every time I build something I’m unfamiliar with I plan to build it at LEAST twice. Some things still take me several tries. - Adam Savage

IMG_1193.JPG707×707 156 KB
1e3365f60c3537089ffb5d3cfbc04a86d2602477.JPG816×612 122 KB

196

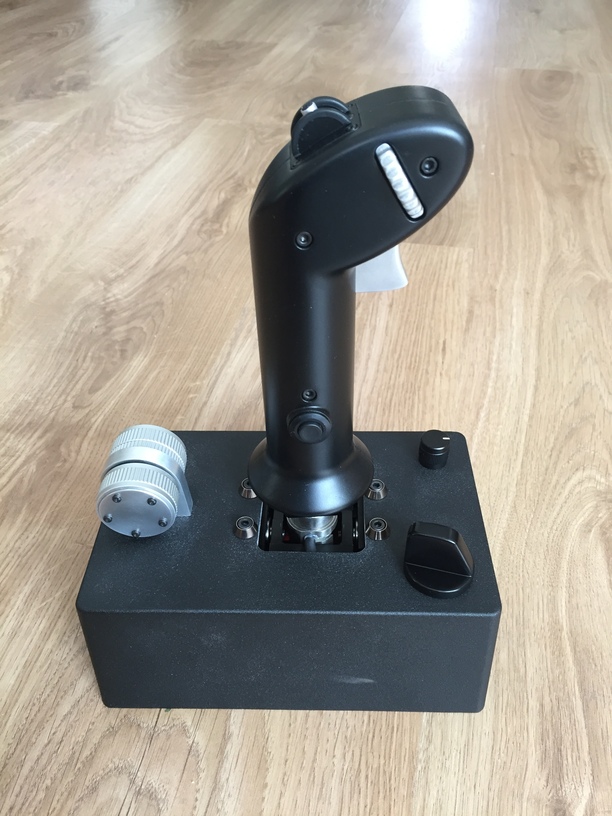

Layout test.
How close can I put that selector knob?

IMG_1197.JPG612×816 180 KB

197

Just mind the full travel of the stick so it doesn’t impact that knob.

Is it feasible to put it on the side of the box?

198

Being a radar controller, I don’t think he will be throwing around like if he was flying a tridecker ha ha

199

Which was the purpose of the layout test :wink:

Well…in the heat of the moment! :smile:

200

@komemiute,
Since you have an eye for artsy stuff…
Should I paint the large encoder assembly, behind the stick?
