Eject! Eject! Eject!

pit-build

#61

Some parts, for the new ejection handle.

The reed switch (window alarm mag switch) inside the extruded alu case that I will be using, and the steel lid I made for the magnets in the handle module to adhere to. Had to make a hole in the lid, for the mag flux to reach the reed switch :slight_smile: Filled the hole with epoxy.
The black lid with glued on magnets will cover the bottom of the handle module, and is the counterpart to the steel lid.

The top of the ejection handle module will have a steel lid, because the black alu lid is too thin to withstand the forces of pulling the ejection handle…
Here it just got a fresh coat of paint.


#62

Starting to make sense…?


#63

Don’t throw it at your monitor if you are in VR…looks weighty!


#64

It would make a serious dent in any LCD screen, for sure!
I usually push the monitor away, when I’m in my goggles, so it won’t cover the sensors.

And, besides, it’s PULL to eject, not PUSH… :wink:


#65

I wouldn’t know…



#66

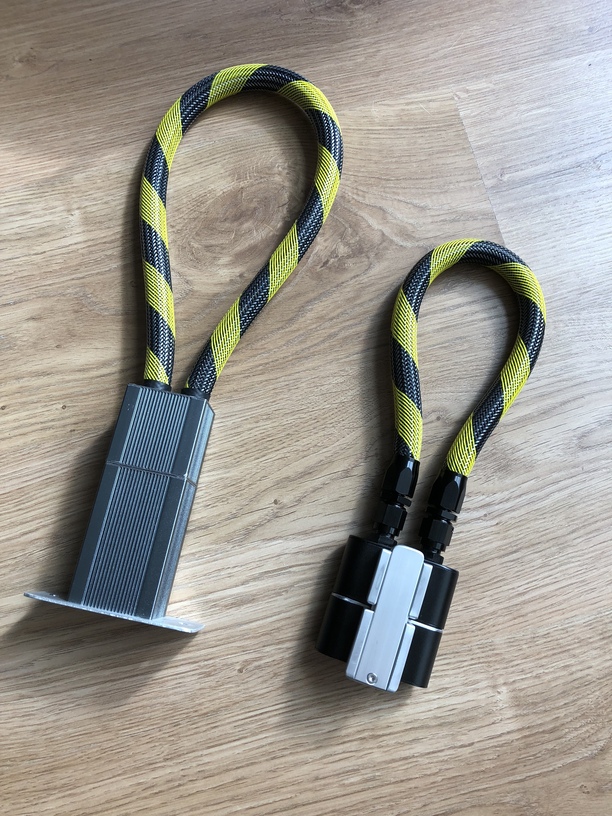

Old vs. New.


#67

The old ejection handle gets a new life in @BeachAV8Rs sim pit. Purely as a prop. Heroes like him don’t need to eject. But it looks cool, and even heroes like that.

Even so, I thought I’d put a teensy2 controller in it, and add a safe/unsafe switch. I mean, he may want to show it to someone, occasionally…

The handle was linked to my ConTrollR Throttle, as an external switch.
Now it will become a USB controller of it’s own.
It will be recognized as a 3 button game controller. One pulsing button #1 as the handle is pulled, and buttons #2 & #3 depending on the switch position.

Now… What should I call it. What should the device name be…?


#68

I’m going to have my mechanic glue it together. I’m too busy doing other stuff to be grabbing that “Surrender Handle”…

porky1


#69

Well I think that it has to be “Surrender Handle” now :slight_smile:


#70

«PullToSurrender»? :rofl:


#71

#72

Device Name?

    1. EjectEjectEject
    1. SurrenderHandle
    1. PullToSurrender
    1. EjectionHandle
    1. PullToEject

0 voters


#73

That’s awesome. I can’t wait to do it in VTOL VR because of how it looks in that sim…


#74

PullitHarder


#75

The curse of a DIYer… You always think you can improve on what you build, so you are doomed to eternal tinkering. Actually, I like that part! :wink:

I bet you can spot the change…
No?
Isn’t it obvious that the handle tube is 2mm thinner in diameter, and the loop is about 10mm lower? :roll_eyes:

The previous silicon tube I used was 16mm and while softer than the steel reinforced tube, I wanted it even softer.
So, this is a 14mm silicon tube.
I made the loop just a little bit shorter, to close the loop diameter slightly.

Juuust perfect! :ok_hand:t3:


#76


#77

Until the next bit of tinkering :wink:


#78

Of course… :rofl:

Perfection is not a state. It’s a pursuit. :wink:


#79
